Analyzing the design of websites

As a precursor to a design checklist we will be publishing next week, we thought it would be interesting to try some different experiments on the home pages of popular websites, to see if it was possible to automatically (programmatically) calculate whether a design is good or not. We chose Apple, Microsoft, 37 Signals, YouTube and Myspace. Analysis was carried out on the afternoon of Wednesday 10 June 2009.Note that all images (except the typography hierarchies in the final section) are clickable for larger versions of each image.

Balance

Although not a hard-and-fast rule, a good design should typically (unless the idea is to cause tension through imbalance) take the balance of the composition into consideration, where smaller dark areas can be balanced out by larger areas of lighter areas.

We brainstormed some mathematical approaches to this; eventually Ben and Carey opted for a vector-based center of mass algorithm, using a weighted luminosity measure of each pixel to determine the weight.

In the results below, the green dot represents the absolute middle of each screen, with the red dot identifying our calculated center of mass.

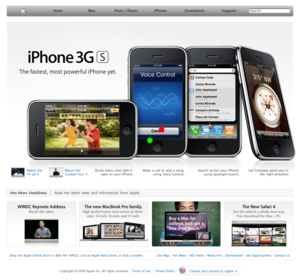

Images of iPhone 3Gs

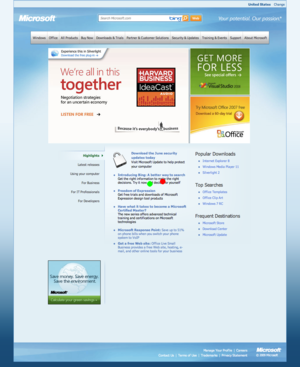

Microsoft web page

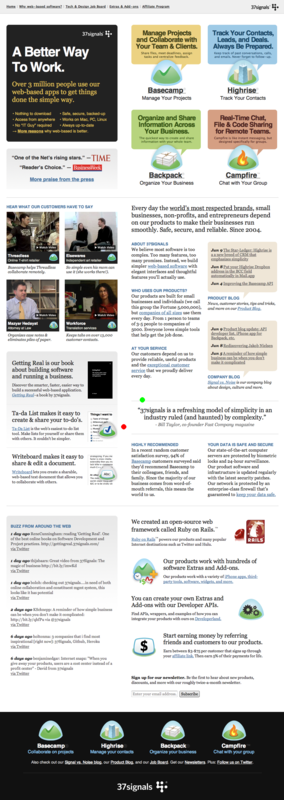

37 Signals web page on a Better Way to Work

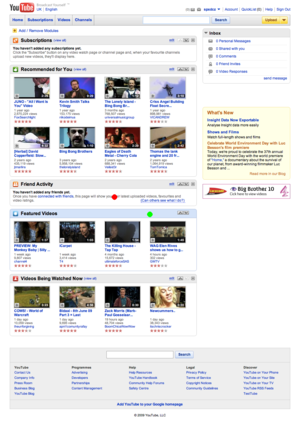

Youtube web page

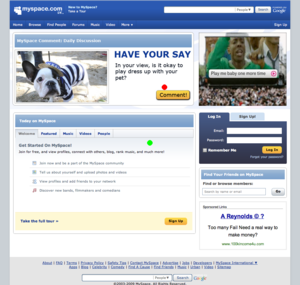

Myspace web page

As can be seen, most home pages are fairly well balanced, with the two largest discrepancies (relative to the size of the page) being YouTube and Myspace. Coincidentally (or perhaps not), these could be considered the least professional of the designs, so this does begin to support the assertion that some aspects of good design can be calculated automatically.

Colors

The colors used in a design should be harmonious, or at the very least, not clash (again, unless that is the specific intention). The pie charts below show the distribution of colors on each home page.

Note: The chart on the left includes the background color of each page, the chart on the right does not include the background color.

Apple

Apple pie chart

Apple pie chart

Microsoft

Microsoft pie chart

Microsoft pie chart

37 Signals

37 Signals pie chart

37 Signals pie chart

Youtube

Youtube pie chart

Youtube pie chart

Myspace

Myspace pie chart

Myspace pie chart

We have not yet used color theory to analyze this data (e.g. to test for complementary colors), but even the rudimentary charts above highlight the simplicity of the Apple design.

Typography

The text on a design should ideally follow a pre-defined typographical hierarchy, where every step in the hierarchy should be clearly differentiated: by size (at least one pixel), weight, style (e.g. italics) and/or font family.We created a Javascript application that loops through all text elements on the page, and stores the typographical information about each. The variations in typography on each home page is shownbelow, with the percentages representing how much text (by character count) uses each style.

Apple

Lucida Grande text different sizes

Pie chart analysis on Apple

Microsoft

Tahoma font text different sizes

Pie chart analysis on Microsoft

37 Signals

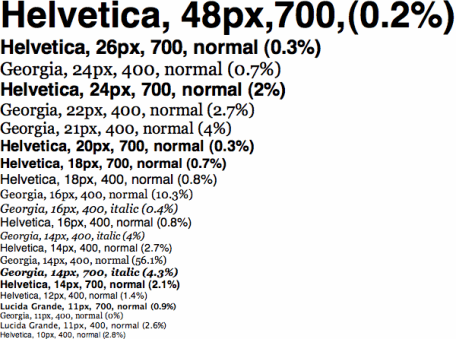

Helvetica font text different sizes

Pie chart analysis 37 Signals

Youtube

Arial font text different sizes

Pie chart analysis Youtube

Myspace

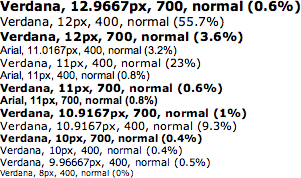

Verdana font text different sizes

Pie chart analysis Myspace

As can be seen, the Apple typography is as close to perfect as you could image; at least 1 pixel and/or weight difference between a very restricted number of styles. Microsoft almost gets it right, but with the largest two styles having less than a pixel between them, the difference becomes a little blurred (these differences can be caused by inaccurate CSS inheritance rather than purposefully designed, but the net result is the same).

37 Signals, although opting for a much large set of styles, is actually extremely systematic about how the family, weight, style and size cascade down the styles, with a clear hierarchy established.

YouTube also performs well in this test. Unfortunately, possibly as expected, Myspace fails badly, not only with a lack of clear hierarchy, but also by committing the typographical sin of mixing similar typefaces (Arial and Verdana).

Summary

These prototype experiments were designed to assess the possibility that a tool could partially critique a design, based on long-established rules of good design. The results are promising, showing at least some relationship between what many people would consider the ‘best’ designs and the output of these algorithms.
